Icon Resources

Skylight includes built-in icon resources that can be set directly through Application Builder or referenced within application scripts.

Icon Resource Lookup Table
In Application Builder, an icon can be added to a card by enabling the Icon property and then selecting the icon and color. You may select any available media to use for the icon.
Note that the icon images shown here are a representation of an icon; the actual rendered image may vary slightly, but the concept is the same. Shape or color may be slightly different.
Alerts
Arrow
Call
Custom
Media
Misc
Navigation
Settings
State
Alerts
​
​
​ ic_al_call_01
​ ic_al_call_autoanswer_on_01
​ ic_al_call_failed_01
​ ic_al_call_unanswered_01
​ ic_al_confirm_01
​ ic_al_info_01
​ ic_al_media_01
​ ic_al_media_message_01
​ ic_al_media_snapshot_01
​ ic_al_message_01
​ ic_al_replay_01
​ ic_al_task_01
​ ic_al_warning_01
​
Arrow
​
​
​ic_arrow_down_01
​ ic_arrow_left_01
​ ic_arrow_right_01
​ ic_arrow_up_01
Call
​
​
​ ic_call_audio_01
​ ic_call_autoanswer_on_01
​ ic_call_contacts_01
​ ic_call_end_01
​ ic_call_failed_01
​ ic_call_flashlight_on_01
​ ic_call_unanswered_01
​ ic_call_viewfinder_on_01
Custom
​
​
​ ic_custom_clamp_01
​ ic_custom_dogbone_01
Media
​
​
​ ic_media_advance5_01
​ ic_media_audio_note_01
​ ic_media_audio_note_and_media_01
​ ic_media_camera_01
​ ic_media_image_01
​ ic_media_list_01
​ ic_media_pause_01
​ ic_media_photo_and_media_01
​ ic_media_play_01
​ ic_media_refresh_01
​ ic_media_rewind5_01
​ ic_media_scanning_01
​ ic_media_snapshot_01
​ ic_media_stop_01
​ ic_media_video_and_media_01
​ ic_media_video_camera_01
​ ic_media_zoomin_01
​ ic_media_zoomout_01
​ ic_media_barcode_01
​ ic_media_gesture_01
​ ic_media_meter_01
​ ic_media_print_01
​ ic_media_tag_01
​
Misc
​
​
​ ic_misc_attachment_01
​ ic_misc_basket_01
​ ic_misc_callrequest_01
​ ic_misc_cart_01
​ ic_misc_caution_01
​ ic_misc_clock_01
​ ic_misc_confirm_no_01
​ ic_misc_confirm_yes_01
​ ic_misc_crimp_01
​ ic_misc_dataentry_01
​ ic_misc_delete_01
​ ic_misc_details_01
​ ic_misc_disable_01
​ ic_misc_wire_insertion_01
​ ic_misc_instruction_01
​ ic_misc_lightbulb_01
​ ic_misc_lightbulb_02
​ ic_misc_link_01
​ ic_misc_minus_01
​ ic_misc_more_01
​ ic_misc_note_01
​ ic_misc_notification_bell_01
​ ic_misc_pick_01
​ ic_misc_pick_02
​ ic_misc_pick_03
​ ic_misc_pick_04
​ ic_misc_pick_cancel_01
​ ic_misc_pick_skip_01
​ ic_misc_plus_01
​ ic_misc_plus_01
​ ic_misc_question_01
​ ic_misc_search_01
​ ic_misc_shop_01
​ ic_misc_system_notification_01
​ ic_misc_tap_01
​ ic_misc_tasks_01
​ ic_misc_thumbs_01
​ ic_misc_toolbox_01
​ ic_misc_turbine_01
​ ic_misc_verification_01
​ ic_misc_wire_01
​ ic_misc_wire_02
​ic_misc_wire_03
​ ic_misc_workpanel_01
​ ic_misc_wrench_01
​
Navigation
​
​
​ ic_misc_home_01
​ ic_misc_location_01
​ ic_misc_map_01
​
Settings
​
​
​ ic_settings_bluetooth_01
​ ic_settings_bluetooth_02
​ ic_settings_camera_check_01
​ ic_settings_database_check_01
​ ic_settings_exit_01
  ic_settings_health_01
​ic_settings_microphone_01
​ ic_settings_microphone_02
​ ic_settings_microphone_check_01
​ ic_settings_settings_01
​ ic_settings_signoff_01
​ ic_settings_switch_01
​ ic_settings_switch_02
​ ic_settings_video_off_01
​ ic_settings_video_on_0
​ ic_settings_volume_01
​ ic_settings_volume_02
​ ic_settings_wifi_01
​ ic_settings_wifi_02
​
State
​
​
​ ic_state_complete_01
​ ic_state_lock_01
​ ic_state_multiplechoice_01
​ ic_state_multiplechoice_02
​ ic_state_required_01
​ ic_state_unlock_01
Finding an Icon's Resource Name in Application Builder

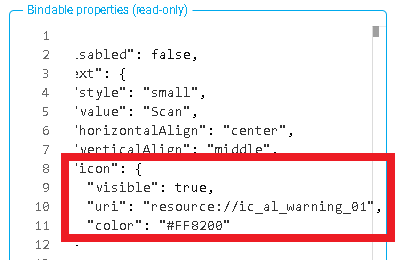

An icon's resource name can be found in the application builder by setting the Icon property on any card and then looking at the Icon's data bind.
Open the data bind editor for Icon
